FHE Benchmarking: Fetch-by-Similarity Workload

Specification

The fetch-by-similarity workload implements a k-nearest-neighbor (kNN) vector-search functionality. The dataset is a key-value store with unit-length vectors as keys and arbitrary (short) bit-strings as payload values. The queries are also unit-length vectors, and the goal is to fetch a small number of payload values, corresponding to keys that are close to the query in terms of Cosine similarity.

In more detail, denote the number of records in the dataset by N. Each record i ∈ [N] is of the form (k_i, pld_i), with k_i ∈ R^d a real vector normalized to ℓ₂-norm of 1, and pld_i ∈ {0,1}^m. A query q ∈ R^d is likewise normalized to ℓ₂-norm of 1. The workload comes with a "promise" that there exist at most t=32 vectors k_i in the dataset with better than 0.8 Cosine-similarity to the query, and all other vectors are much less similar. (See below for how this promise is implemented.) Specifically, there are at most t indexes i such that q · k_i > 0.8, and for all other records q · k_i < 0.8 (where `·' denotes the dot product). Below we say that a vector k_i is similar to the query q if q · k_i> 0.8, and denote

SIM(q) = { i ∈ [N] : q · k_i > 0.8 }.

The workload includes two interfaces for benchmark submitters to implement:

Count matches. On query vector q, the answer is the number of similar vectors to q. That is, the cardinality of the set SIM(q).

Fetch payloads. On query vector q, return the payloads pld_i for all i ∈ SIM(q).

The workload also specifies three different instance sizes, namely (N,d,m) tuples. The specification uses m=64 for the payload-size in all three instance sizes, it is meant as a non-trivial bitlength (and is supported by our reference code that can actually do upto 84 bits). The spec has the following pairs of number-of-records N and dimension d:

Size	Records (N)	Dimension (d)
Small	50,000	128
Medium	1,000,000	256
Large	20,000,000	512

Size

Records (N)

Dimension (d)

Small

50,000

128

Medium

1,000,000

256

Large

20,000,000

512

Hence there are a total of six variants of this workload: Count matches and Fetch payloads, for each one of the three sizes. Submitters need not implement all six, instead each submitter can implement and report the results of any subset.

Submission to the benchmarking suite must set the implementation parameters so as to achieve security level of at least 128 bits (against a semi-honest server). Submitters must document their choice of parameters and explain why they believe that it meets the 128-bit security mandate. (For example, for LWE-based schemes without a sparse key, they can rely on Table 5.2 or Table 5.3 in the HE-security-guidelines document of Bossuat et al. [BCC+24].)

The fetch-by-similarity harness contains a script that can be called to run the implementation of submitters, that script accepts command-line arguments to specify which interface of what instance size to run.


$ python3 harness/run_submission.py -h
usage: run_submission.py [-h] [--num_runs NUM_RUNS] [--seed SEED] [--count_only] [--remote]
                         {0,1,2,3}

Run the fetch-by-similarity FHE benchmark.

positional arguments:
  {0,1,2,3}            Instance size (0-toy/1-small/2-medium/3-large)

options:
  -h, --help           show this help message and exit
  --num_runs NUM_RUNS  Number of times to run steps 4-9 (default: 1)
  --seed SEED          Random seed for dataset and query generation
  --count_only         Only count # of matches, do not return payloads
  --remote             Run example submission in remote backend mode

fetch-by-similarity Github repository

Implementing the Promise

Details

The fetch-by-similarity workload harness generates a synthetic dataset and queries at random, so that they meet the promise above with overwhelming probability. It begins by choosing a set of c = N/32 "centers", uniformly at random and independently on the dimension-d unit sphere (so with high probability they are nearly orthogonal to each other, see the analysis below). Denoting the resulting set of centers by (c₁,...,c_c), each one of the keys k_i, as well as the query vector q, is sampled using the Sample-point procedure below.

Algorithm 1 The sampling procedure, returns either a random point or near one of the centers.

procedure Sample-point(c₁,...,c_c): # The c_j's were chosen at random on the unit sphere

r ← a fresh random point on the unit sphere in R^d
With probability 50% return r
Otherwise:
1. Choose a random index j ∈ {1,...,c}
2. Set r := c_j + 0.3 r
3. return r/|r| # Normalize to unit length

That procedure outputs an independent point on the unit sphere with probability 50%, and otherwise it samples a point near a randomly-chosen center c_j. Hence the dataset ends up having c clusters, each with expected size of 16 points, and N/2 other keys that are not in any of the clusters.

Similarly, with probability 50% the query is near one of the centers (so is expected to have around 16 matches), and otherwise it is another random point on the unit sphere (and hence expected to have no matches at all).

Analysis of the Sampling Procedure

Below we show that points that are sampled near the same center are likely to have similarity of more than 0.9, while points that are not sampled near the same center are very unlikely to have similarity more than 0.7.

Upper bound for points not near the same center.

We start with an upper bound on the similarity between two uniform random points on the unit sphere. It is easy to see that the expected value of the inner product is O(1/ $\sqrt{d}$ ), reflecting the fact that two random unit vectors in high dimension are nearly orthogonal to each other. For a high-probability bound, we use the theorem below (whose proof can be found on StackExchange [Leu22]):

Theorem: Fix any y on the sphere S^d-1= { x ∈ R^d: |x|₂=1 }. Let z be a random variable, uniformly distributed on S^d-1. Then for any ε ∈ (0,1/ $\sqrt{d}$ ), it holds that Pr[|y^Tz|>ε] ≤ (1-ε²)^d^/2.

By symmetry, the probability Pr[y^Tz>ε] (without the absolute value) is half of the expression above. Substituting ε=0.7 and setting d=128 (for the smallest instance), we get Pr[y^Tz > 0.7] ≤ (1-0.7²)⁶⁴ / 2 < 2^-63.

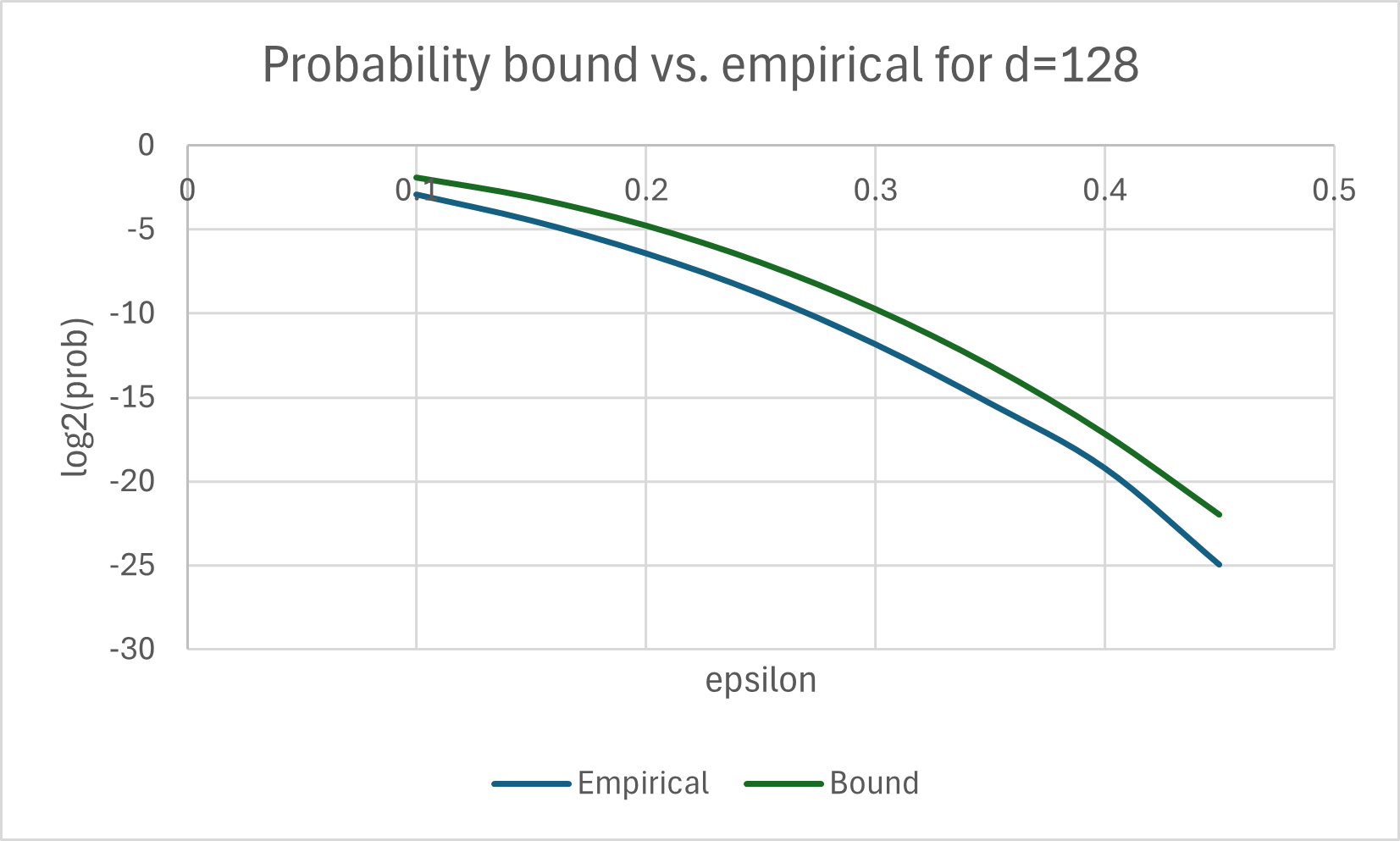

Below we plot the bound above against empirical results for ε ∈ [0.1,0.45], which we obtained by measuring the inner product of about 4e+9 random points in dimension d=128. Similar calculations for the medium (d=256) and large (d=512) instances yield bounds below 2^-125 and 2^-249, respectively.

Bound vs. Empirical
The bounds from Theorem 1 vs. empirical results for dimension d=128.

Empirical results for points near the same center.

Fixing an arbitrary unit-length center point c, we recall that points that are chosen near that center point have the form v_i=(c+r_i)/ℓ_i, where r_i is a random point of length 0.3 and ℓ_i=|c+r_i|. Since r_i is a random point on the 0.3-radius sphere, then it is nearly orthogonal to c, and therefore ℓ_i=|c+r_i| ≈ (1² + 0.3²)^1/2 = $\sqrt{1.009}$ ≈ 1.044. For two such points v₁, v₂, the corresponding r_i's are also nearly orthogonal to each other, hence

v₁ · v₂ = (c+r₁)ℓ₁ · (c+r₂)ℓ₂ = (1/ℓ₁ℓ₂) · (|c|²+ r₁·c+c·r₂+r₁·r₂) ≈ 1/1.044² · 1 ≈ 0.917

Indeed, experimental results confirm the above, with 1000 samples we observed an average similarity of 0.9163 and minimum similarity of 0.8945.

Bibliography

[BCC+24] Security guidelines for implementing homomorphic encryption. Jean-Philippe Bossuat, Rosario Cammarota, Ilaria Chillotti, Benjamin R. Curtis, Wei Dai, Huijing Gong, Erin Hales, Duhyeong Kim, Bryan Kumara, Changmin Lee, Xianhui Lu, Carsten Maple, Alberto Pedrouzo-Ulloa, Rachel Player, Yuriy Polyakov, Luis Antonio Ruiz Lopez, Yongsoo Song, and Donggeon Yhee. IACR Communications in Cryptology, 1(4):26, 2024.

[Lue22] Concentration of measure on sphere: Bounding the probability of a large angle. C. Leuridan. https://math.stackexchange.com/questions/4560617/ (version 2022-10-27). Based on an exercise in chapter 3 of High-Dimensional Statistics: A Non-Asymptotic Viewpoint by Martin J. Wainwright, Cambridge University Press, 2019.
